Product Description

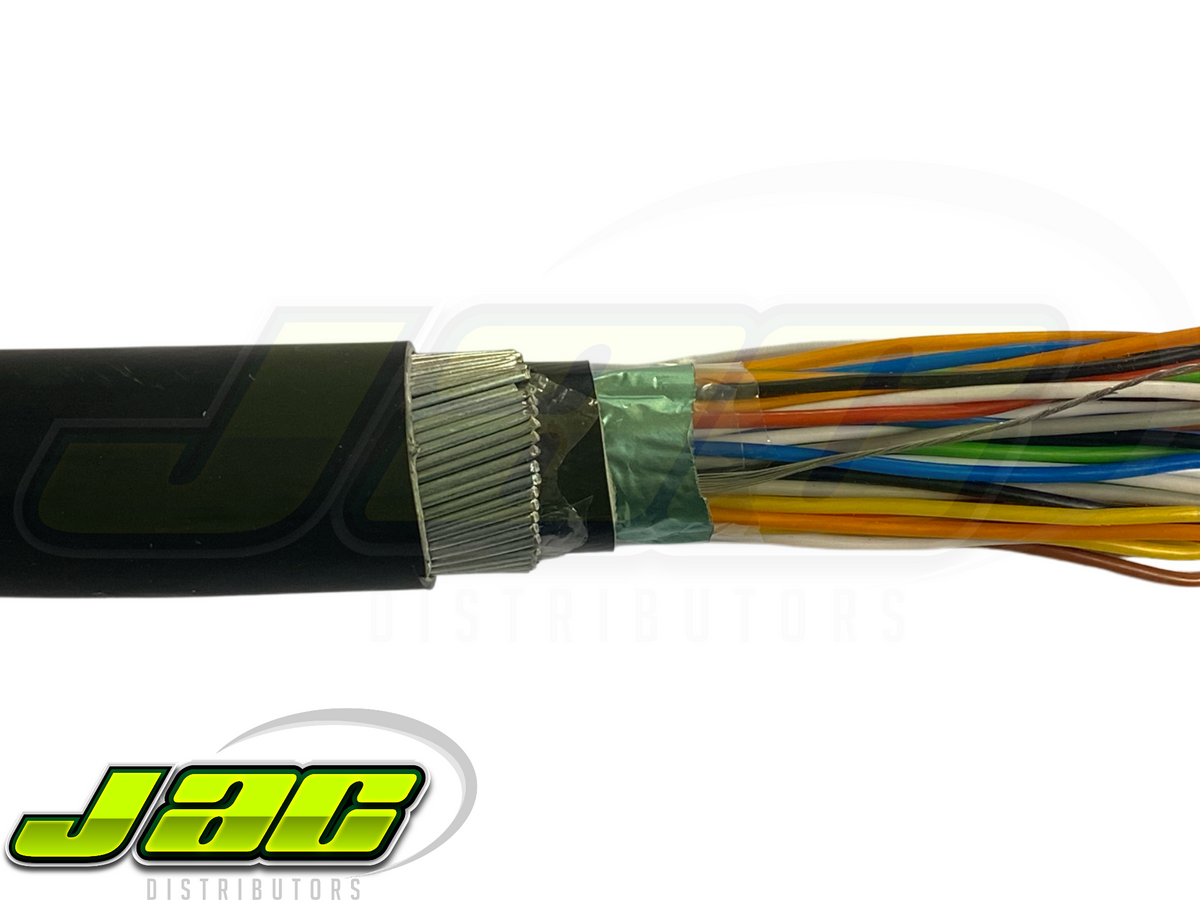

30 Pair 0.5mm2 Collectively Screened and Armoured Part 1 Type 2 PAS5308 LSZH Black.
BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.
Low Smoke Zero Halogen (LSZH) versions of BS 5308 are widely used in industrial and commercial installations where safety to personnel and equipment is critical.
Type 2 armoured cables are suitable for burial underground
| Amount of Cores |
Stranding |
Insulation |
Drain Wire |
Screen |
Inner Sheath Material |
Armour |
Outer Sheath |
Diameter mm |
Min Bending Radius Indoor/Outdoor |
Cable Weight |
Operating Temp |
| 30 Pair |
Class 5 flexible copper conductor |
XLPE |
Tinned copper drain wire |
Collective aluminium mylar |
LSZH |
SWA |
LSZH Black |
33.9mm |
6 x overall diameter |
1760 Kg/Km |
Operating -15 to +90°C |
