    5308-2x2x0.5-CAM-SWA-P1T1-LSZH-BLK

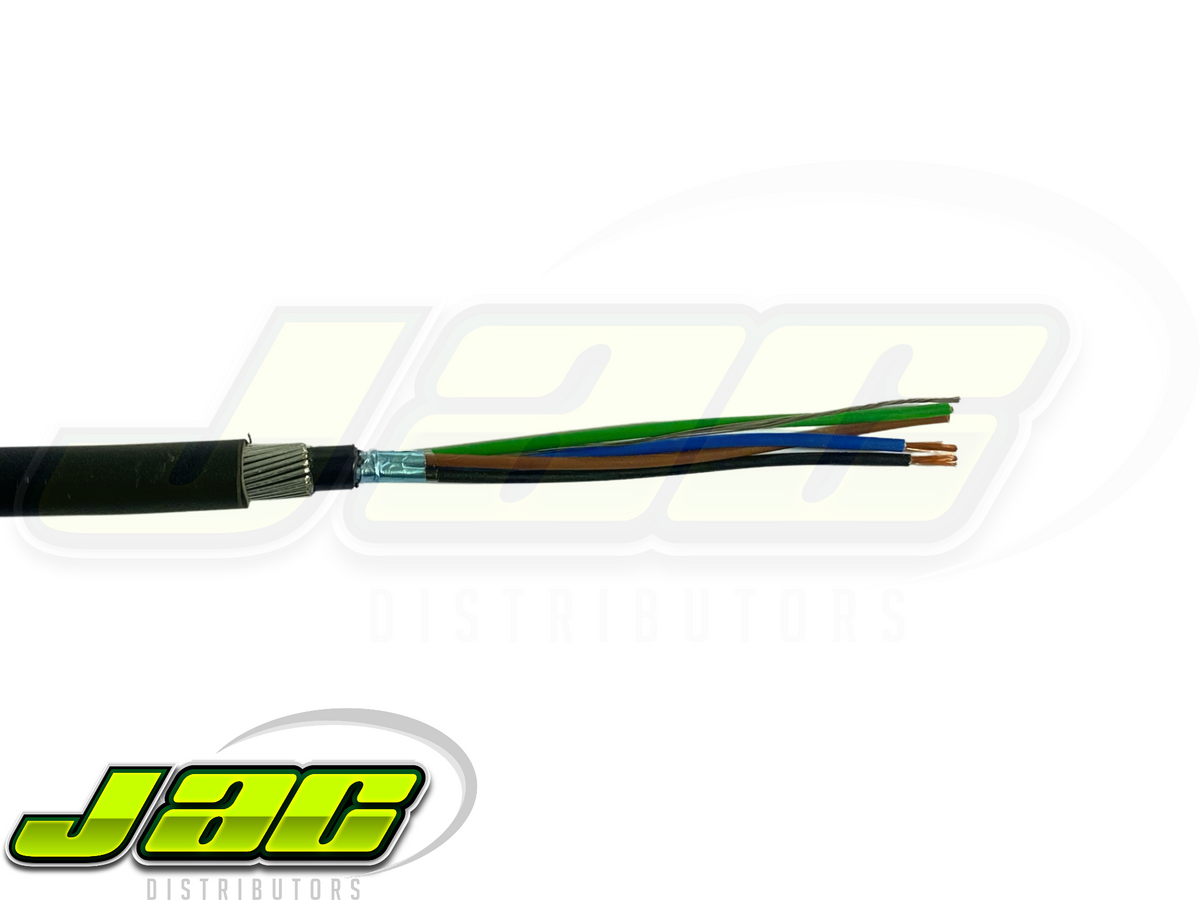

    2 Pair 0.5mm2 Collectively Screened and Armoured Part 1 Type 2 PAS5308 LSZH Black

    Length

    Product Description

    2 Pair 0.5mm2 Collectively Screened and Armoured Part 1 Type 2 PAS5308 LSZH Black.

    BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.

    Low Smoke Zero Halogen (LSZH) versions of BS 5308 are widely used in industrial and commercial installations where safety to personnel and equipment is critical.

    Type 2 armoured cables are suitable for burial underground

    Construction Data

    Amount of Cores Stranding Insulation Drain Wire Screen Inner Sheath Material Armour Outer Sheath Diameter mm Min Bending Radius Indoor/Outdoor Cable Weight Operating Temp
    2 Pair Class 5 flexible copper conductor XLPE Tinned copper drain wire Collective aluminium mylar LSZH SWA LSZH Black 12.3mm 6 x overall diameter 260 Kg/Km Operating -15 to +90°C
