    5308-2x2x0.5-ICAM-P1T1-LSZH-BLK

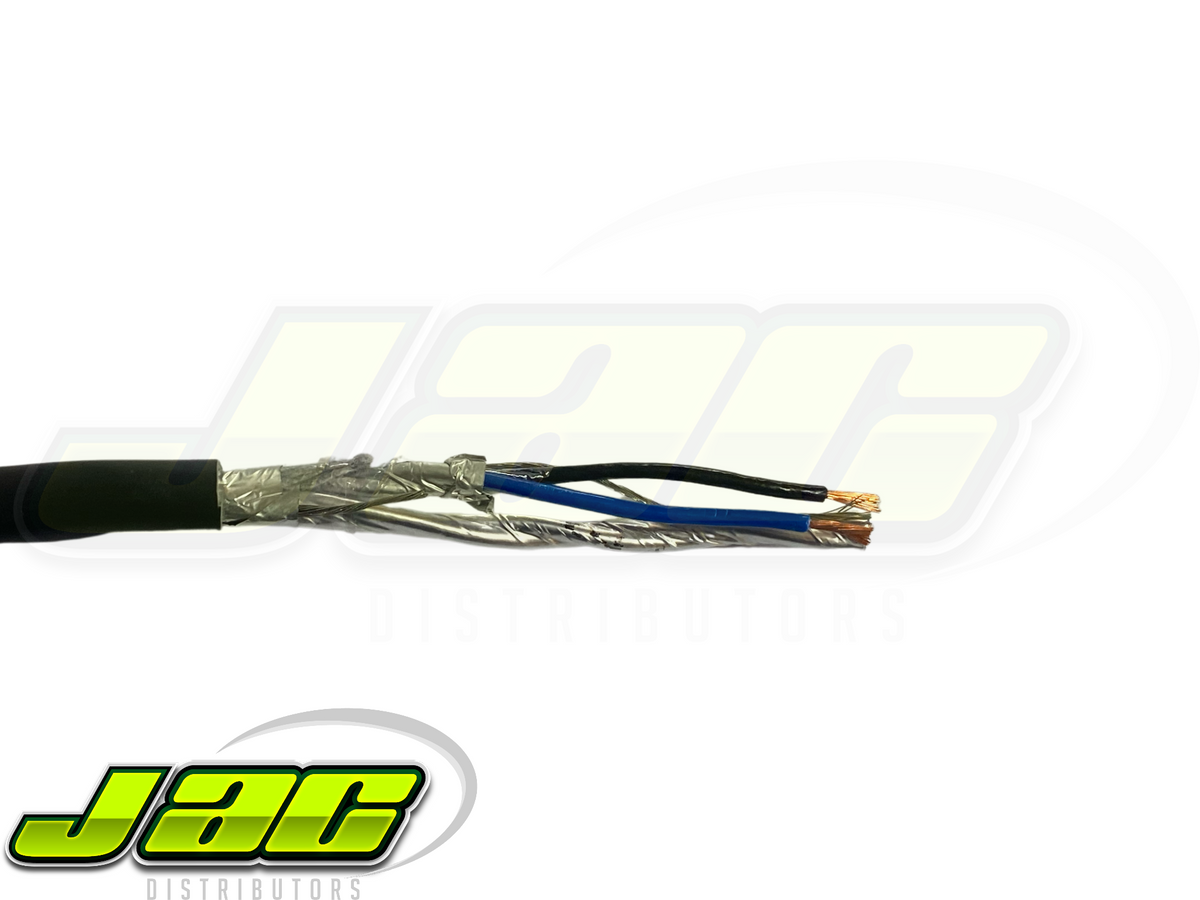

    2 Pair 0.5mm2 Individual/Collectively Screened Part 1 Type 1 PAS5308 LSZH Black

    Length

    Product Description

    2 Pair 0.5mm2 Individually and Collectively Screened Part 1 Type 1 PAS5308 LSZH Black.

    BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry.

    Low Smoke Zero Halogen (LSZH) versions of BS 5308 are widely used in industrial and commercial installations where safety to personnel and equipment is critical.

    Construction Data

    Amount of Cores Stranding Insulation Drain Wire Screen Outer Sheath Other Sheath Options Diameter mm Min Bending Radius Indoor/Outdoor Cable Weight Operating Temp
    2 Pair Class 5 flexible copper conductor XLPE Tinned copper drain wire Individual and Collective aluminium mylar LSZH Black PVC 11.8mm 5 x overall diameter 130 Kg/Km Operating -15 to +90°C
