Product Description
305m Grey

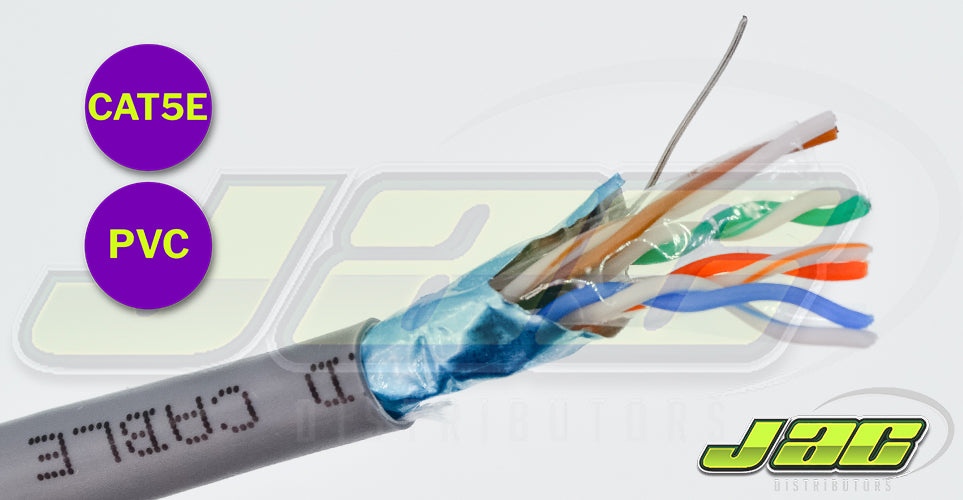

4 Pair F-UTP PVC Grey.
Short for Category 5 Enhanced, Cat-5e network cabling is used as a cabling infrastructure for 10BASE-T (Ethernet), full duplex 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet, or GbE) networks.
The Cat 5e standard provides performance of up to 100 MHz and can be used up to a maximum length of 100 meters.
Cat5E Ethernet cables are one of the most popular types of network cable for connecting computers, modems, routers and other wired internet capable devices.
Cat5E cable offers significant performance improvements over standard Cat5 Cable, including up to 10 times faster speeds.
Construction Data
| Inner Conductor |
Stranding |
Insulation |
Overall Tape |
Drain Wire |
Overall Screen |
Screen Coverage % |
Outer Sheath |
Outer Sheath Options |
Diameter mm |
Min bending radius indoor/outdoor mm |
Cable Weight |
Operating Temp |
Typical Applications |
| Cu |
Solid 24 AWG cable |
Polyethylene |
Aluminium-Polyester tape + tinned copper drain wire |
Tinned Copper, 7/0.2mm |
Aluminium Foil |
100% |
PVC Grey |
LSF,LSZH,PE,DB |
6.2 |
4 x overall diameter installed, 8x installing |
48Kg/Km |
Fixed -20°C to 60°C Flexing -10°C to 60°C |
Suitable for CCTV Suitable for POE Suitable for VOIP Phones |
